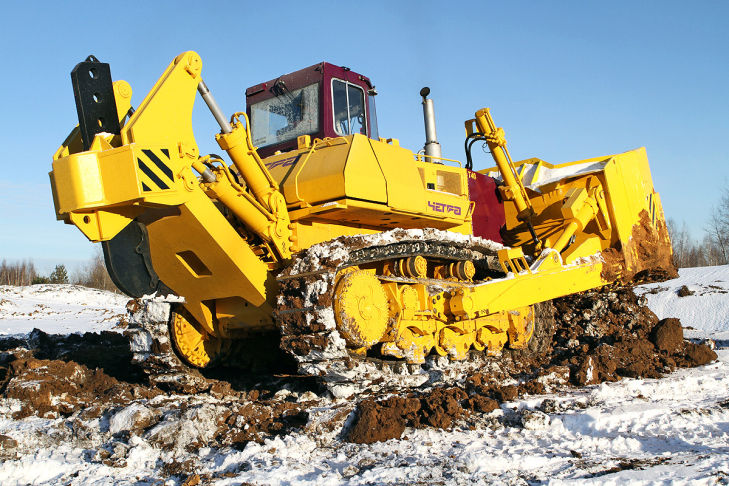

Chetra T-40
CHETRA T40 is the most powerful biggest russian bulldozer created for gold and coal mining industry. To provide the best traction characteristics the special carriage suspension was designed. In combination with a powerful engine and huge capacity dump these technical solutions allowed to achieve the highest performance and operator comfort.
Part number:
Supplier:
"Service of Industrial Machines" LLCDescription
TECHNICAL PARAMETERS OF CHETRA T-40 BULLDOZER
Model of engine QSK19-C650
Diesel power, kW (HP) 435(590)
Fuel tank, liters 1 200
Weight (with attached implement), kg 64 845
Specific ground pressure (standart /LGP shoe), kgf/cm2 1,17
Width of standart shoe/ LGP shoe , mm 710
Road clearance, mm 723
ATTACHED IMPLEMENTS (OPTIONAL)
Semi-universal blade, W х H /m3 4730х2650/21
Angle blade, W х H /m3 -
Straight blade, W х H /m3 -
Variable power angle tilt VPAT blade (VPAT), W х H /m3 -
Universal blade, W х H /m3 -
Coal blade, W х H /m3 -
Rake blade, W х H /m3 -
Number of ripper shanks 1- shank ripper
Winch availability (traction force, tn.) -
DIMENSIONS (WITHOUT ATTACHED IMPLEMENTS)
Length (standart/LGP), mm 6050
Width (standart/LGP), mm 3296
Height (standart/LGP), mm 4250
Model of engine QSK19-C650
Diesel power, kW (HP) 435(590)
Fuel tank, liters 1 200
Weight (with attached implement), kg 64 845
Specific ground pressure (standart /LGP shoe), kgf/cm2 1,17
Width of standart shoe/ LGP shoe , mm 710
Road clearance, mm 723
ATTACHED IMPLEMENTS (OPTIONAL)
Semi-universal blade, W х H /m3 4730х2650/21
Angle blade, W х H /m3 -
Straight blade, W х H /m3 -
Variable power angle tilt VPAT blade (VPAT), W х H /m3 -
Universal blade, W х H /m3 -
Coal blade, W х H /m3 -
Rake blade, W х H /m3 -
Number of ripper shanks 1- shank ripper
Winch availability (traction force, tn.) -
DIMENSIONS (WITHOUT ATTACHED IMPLEMENTS)
Length (standart/LGP), mm 6050
Width (standart/LGP), mm 3296
Height (standart/LGP), mm 4250
