SHVABE SH.12G03-UGV

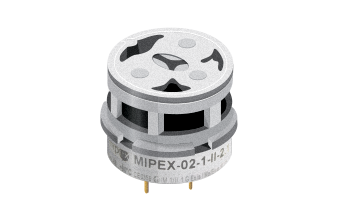

MIPEX-02 is a fully digital, microchip-based NDIR optical gas sensor of an industry-standard size relying on a proprietary LED technology and offering uniquely low power consumption (under 3 mW). Designed for ultimate performance and application in the most hazardous and toxic environments, this sensor demonstrates remarkable reliability, accuracy of measurement and reaction to growing gas concentration.

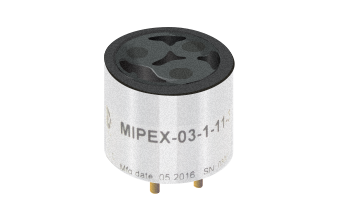

MIPEX-03 LED-based NDIR gas sensors were specifically designed for replacing traditional optical and catalytic bead sensors to ensure higher measurement accuracy, longer duration of autonomous operation and dramatically lower power consumption. MIPEX-03 infrared gas sensors are available with a 5-pin combined analog/digital interface for interoperability with lamp-based optical sensors and a 3-pin analog interface for sockets previously used for catalytic bead sensors.

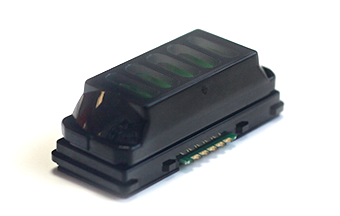

Meet the world's lowest power infrared combustible gas sensor. The revolutionary MIPEX-04 line of our NDIR sensors offers an unprecedentedly low level of power consumption not found in any other methane sensor on the market.

It is designed for remote and local (manual) control operations for opening and closing ball valves DN 300-500 main gas pipelines. It has a safe level of explosion protection, explosion-proof shell and marking iexdii t6ir 65

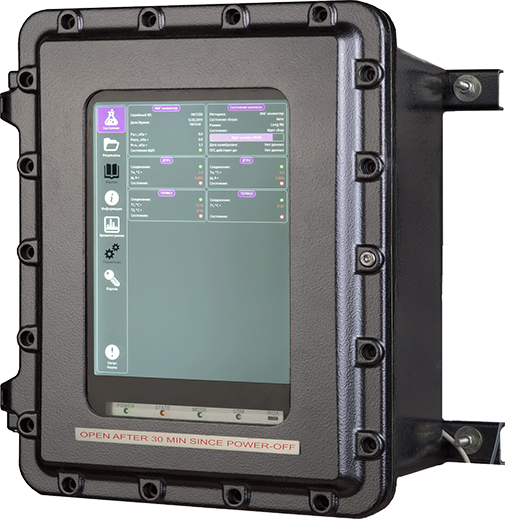

MAG process gas chromatograph is designed for automatic analysis of various fluids in the refining, chemical, petrochemical and other industries. Setting up the analysis conditions, collecting, processing chromatographic data, processing and storage of the results of the analyzes is carried out using the embedded software. MAG GC can include up to 4 independently thermostatically controlled channels. Each channel consists of 1 detector, 1 metering valve with the possibility of backup flash and a column system suitable for a particular application.Flexible modular design allows you to select the appropriate configuration for a wide range of analytical tasks.

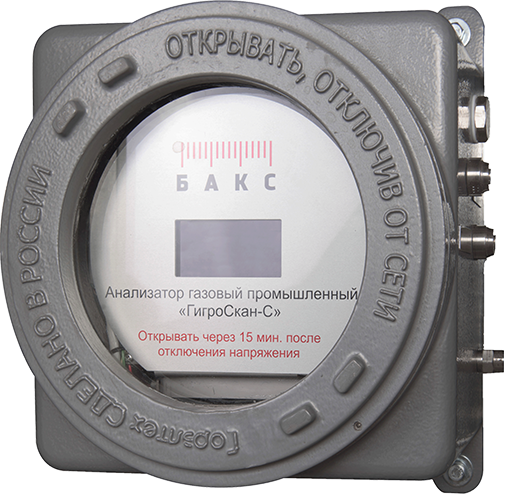

HygroScan process gas analyzers are explosion-proof and their purpose is to automatically determine water vapor content and further calculate water dew point (WDP) in gaseous media, including natural gas according to ISO 18453, ISO 6327. Structural features Analyzer operating principle: sorption capacity; WDP is calculated for gas operating pressure and may be recalculated based on required pressure value, due to integrated analyzed gas pressure sensor; Measurements are done at sample operating pressure up to 25 MPa; All analyzer models are explosion-proof.

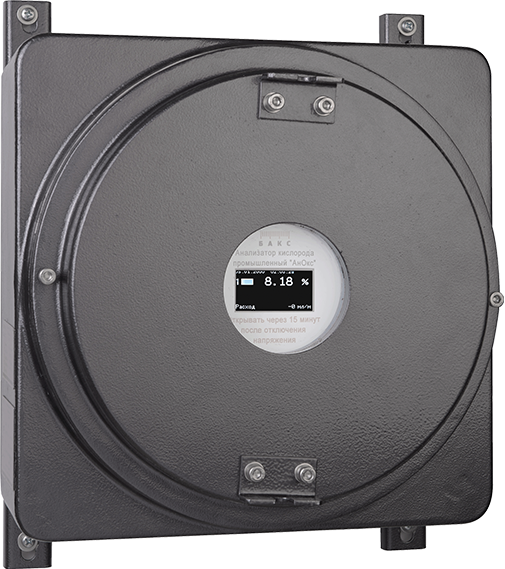

Process Oxygen Analyzers AnOx are intended for oxygen volume ratio measurement in gas fluid, including in natural gas and data transfer to external devices. Adjustment of the analysis conditions, data collection, data processing, processing and storage of the results of the performed analyzes are carried out using the embedded software. The operation principle is based on the determination of oxygen in natural gas using an electrochemical detector (ECD). Depending on the type of oxygen sensor installed, the measurement ranges can vary from 0-500 ppm to 0-100% by volume. Main Features: Electrochemical sensor with high sensitivity Wide detection range (from ppm level to 100%) Fast response Superior accuracy Simple design, easy installation and operation Explosion protection for all modifications
