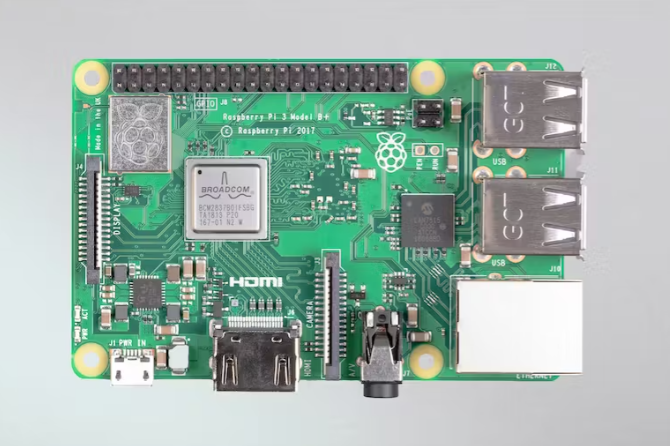

Raspberry Pi 3 Model B+
The Raspberry Pi was designed by the Raspberry Pi Foundation to provide an affordable platform for experimentation and education in computer programming. The Raspberry Pi can be used for many of the things that a normal desktop PC does, including word-processing, spreadsheets, high-definition video, games, and programming.
The Raspberry Pi 3 Model B+ is the final revision in the Raspberry Pi 3 range, maintaining the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.
Part number:
Supplier:
PROdevelopDescription
The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.
Technical Specifications:
Processor: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
Memory: 1GB LPDDR2 SDRAM
Connectivity: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE

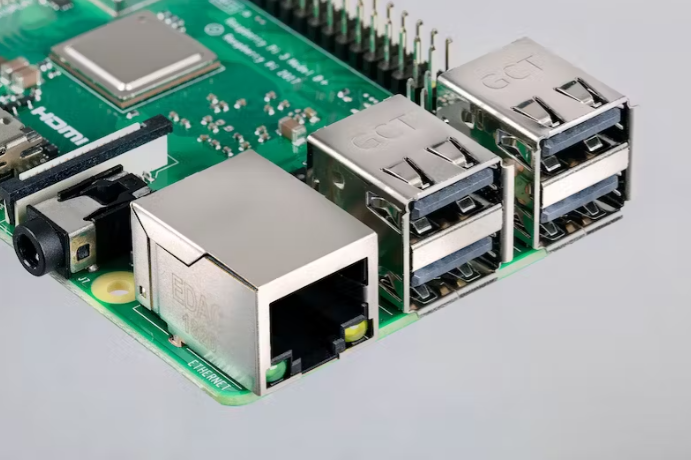

Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
4 USB 2.0 ports
Access: Extended 40-pin GPIO header
Video & Sound: Full-size HDMI®
CSI camera port for connecting a Raspberry Pi camera
DSI display port for connecting a Raspberry Pi touchscreen display
4-pole stereo output and composite video port

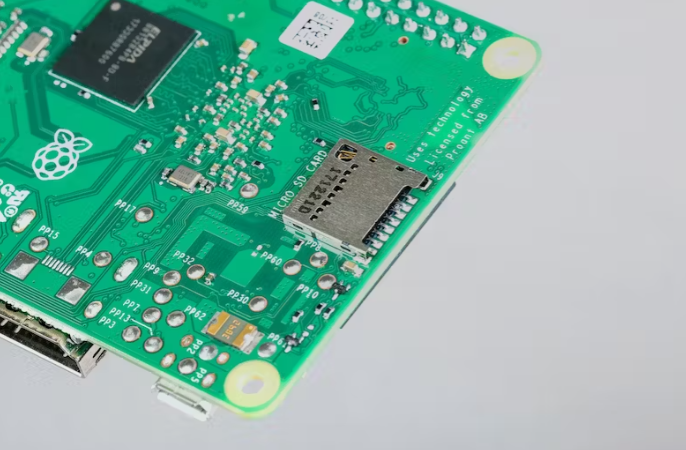

SD card Support: Micro SD port for loading your operating system and storing data
Input Power: 5V/2.5A DC power input
Power-over-Ethernet (PoE) support (requires separate PoE HAT)
Dimensions: 85×56×17mm
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.
Technical Specifications:
Processor: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
Memory: 1GB LPDDR2 SDRAM
Connectivity: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
4 USB 2.0 ports
Access: Extended 40-pin GPIO header
Video & Sound: Full-size HDMI®
CSI camera port for connecting a Raspberry Pi camera
DSI display port for connecting a Raspberry Pi touchscreen display
4-pole stereo output and composite video port
SD card Support: Micro SD port for loading your operating system and storing data
Input Power: 5V/2.5A DC power input
Power-over-Ethernet (PoE) support (requires separate PoE HAT)
Dimensions: 85×56×17mm
Specification
1. raspberry-pi-3-b-plus-product-brief.pdf
