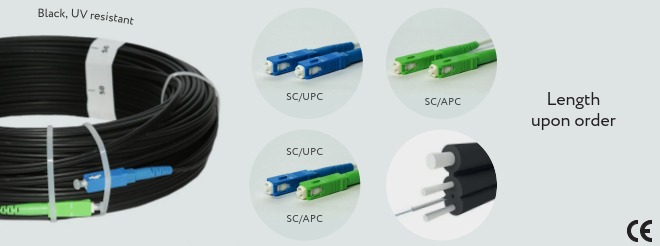

FTTH patch cord user external
Patch cords are used in the construction of communication networks and provide higher installation speed and lower cost than using the standard technology with fiber welding.
The patch cord is intended for suspension on the poles during the connection of users.
Part number:
Supplier:
AvantysDescription
Size: 5,2х2,0 mm
Fiber type: 9/125 (G.657.A2)
Central member: two FRP (glass rod)
Add. central member: FRP (glass rod)
Standard attenuation, dB/km: 0,4 at 1310 nm, 0,3 at 1550 nm
Jacket: LSZH, standards UL1581, ANSI/UL83
Max tensile load: 0,4 kN
Central member diameter: 0,5 mm
Add. central member diameter: 1 mm
Max compression load: 1000 N/100 mm
Fiber type: 9/125 (G.657.A2)
Central member: two FRP (glass rod)
Add. central member: FRP (glass rod)
Standard attenuation, dB/km: 0,4 at 1310 nm, 0,3 at 1550 nm
Jacket: LSZH, standards UL1581, ANSI/UL83
Max tensile load: 0,4 kN
Central member diameter: 0,5 mm
Add. central member diameter: 1 mm
Max compression load: 1000 N/100 mm
