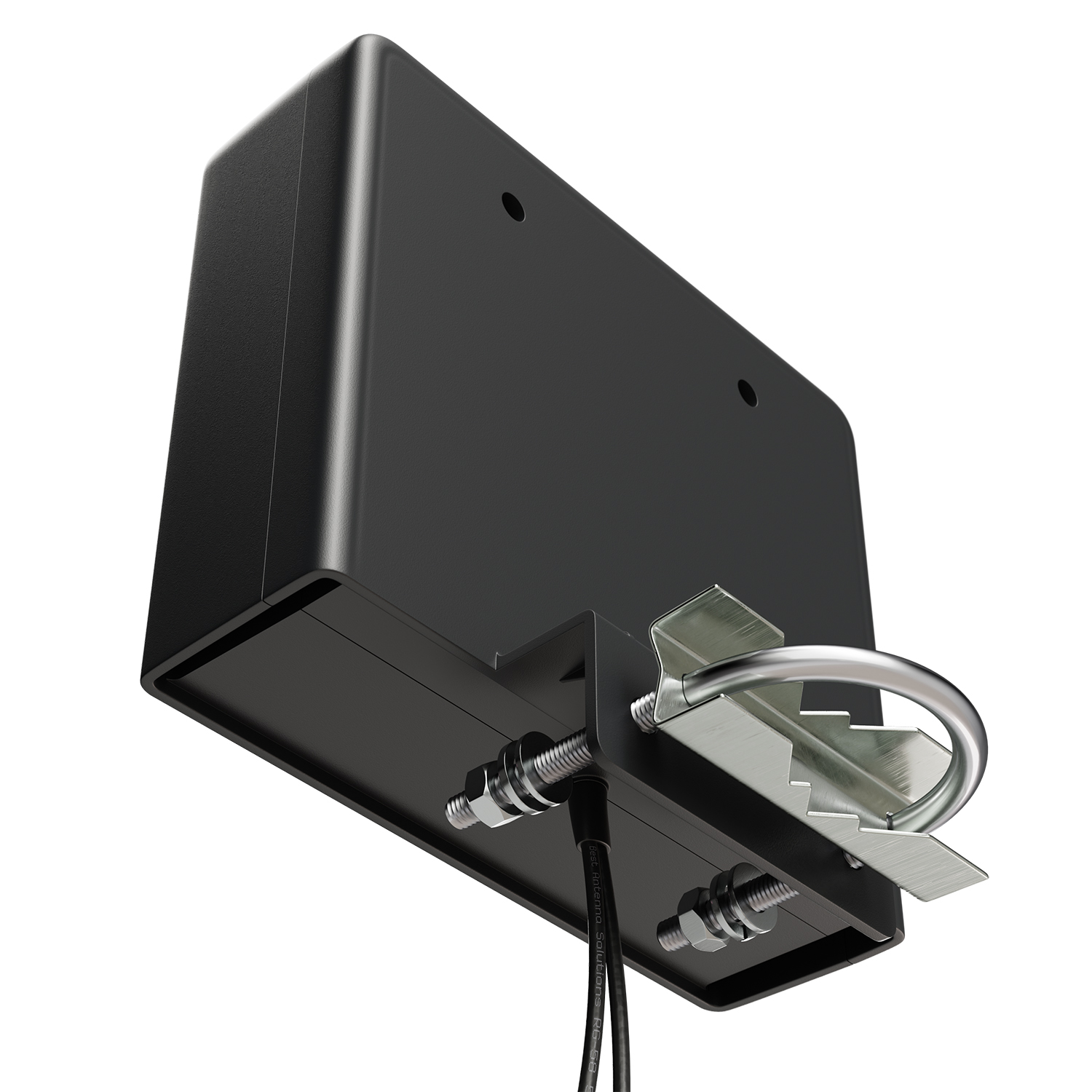

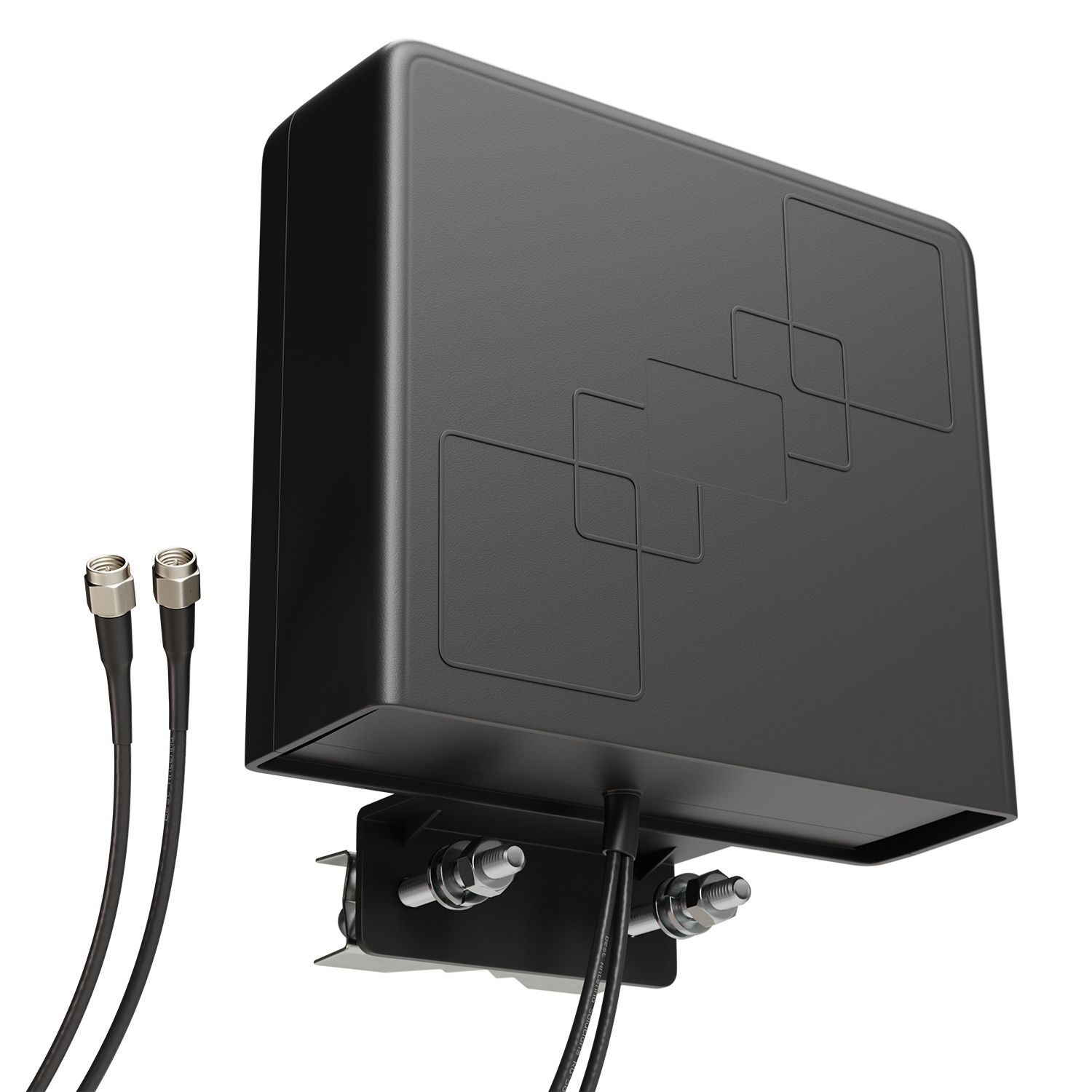

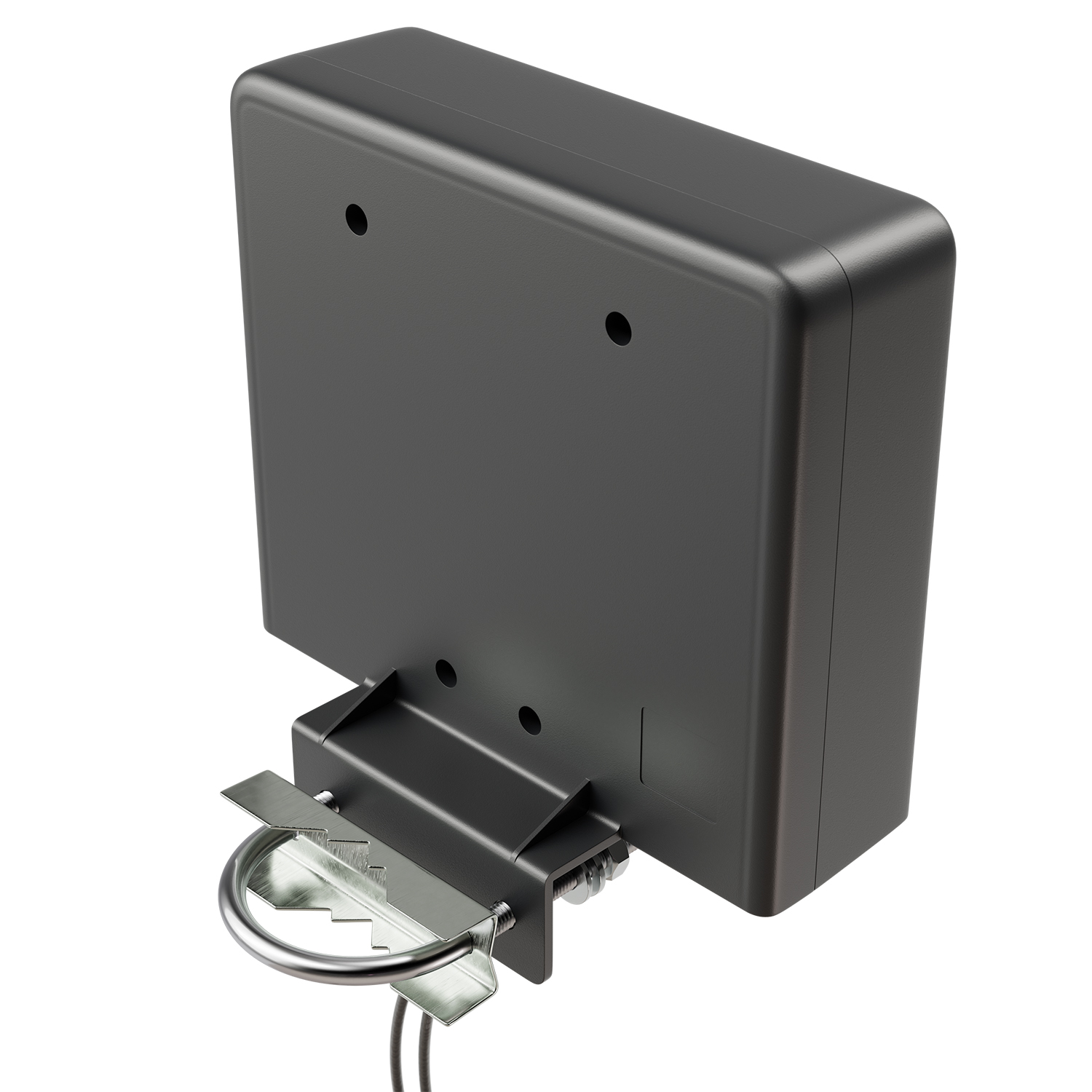

Communication Antenna BAS-2346 FLAT MIMO
The passive compact outdoor flat-panel antenna is used with USB modems and LTE Wi-Fi routers. The key feature of this antenna is a broad band of operating frequencies, in other words, the antenna works in all widely used mobile network frequencies and also in network 5G at 3.5 GHz. This model support the MiMo technology.
To protect against static electricity there is a DC circuit. The antenna’s construction is covered with radiotransparent plastic that protects against UV and adverse weather conditions and prolongs antenna’s life. The antenna is installed on a mast or a bracket up to 50 mm diameter. This direct antenna has a two cables and a SMA connectors.
型号:
价格: 9 USD
提供者:
-描述
Placing antennas: outdoor
Antenna Type: Communication Antenna with MiMo
Frequency range: 690-900 MHz, 1700-2700 MHz, 3.5 GHz
Front to back ratio: ≥ 7 dB @ 690-900 MHz
≥ 9 dB @ 1700-2700 MHz
≥ 7 dB @ 3.5 GHz
SWR in bandwidth: ≤ 1.5 all bands
The gain: ≤7 dB @ 690-900 MHz, ≤9 dB @ 1700-2700 MHz, ≤7 @ 3.5 GHz
Bracket & Hardware material: Aluminium, Galvanized steel
Impedance 50 Ohm
Dimensions: 160x170x75 mm
Weight: no more than 0.8kg
Connector type: SMA
The cable length: 5m
Antenna Type: Communication Antenna with MiMo
Frequency range: 690-900 MHz, 1700-2700 MHz, 3.5 GHz
Front to back ratio: ≥ 7 dB @ 690-900 MHz
≥ 9 dB @ 1700-2700 MHz
≥ 7 dB @ 3.5 GHz
SWR in bandwidth: ≤ 1.5 all bands
The gain: ≤7 dB @ 690-900 MHz, ≤9 dB @ 1700-2700 MHz, ≤7 @ 3.5 GHz
Bracket & Hardware material: Aluminium, Galvanized steel
Impedance 50 Ohm
Dimensions: 160x170x75 mm
Weight: no more than 0.8kg
Connector type: SMA
The cable length: 5m
