Leonardo is a unique simulator that combines tooth preparation on a phantom with simultaneous 3D visualization of every action on a screen and automatic assessment of the performed procedure.

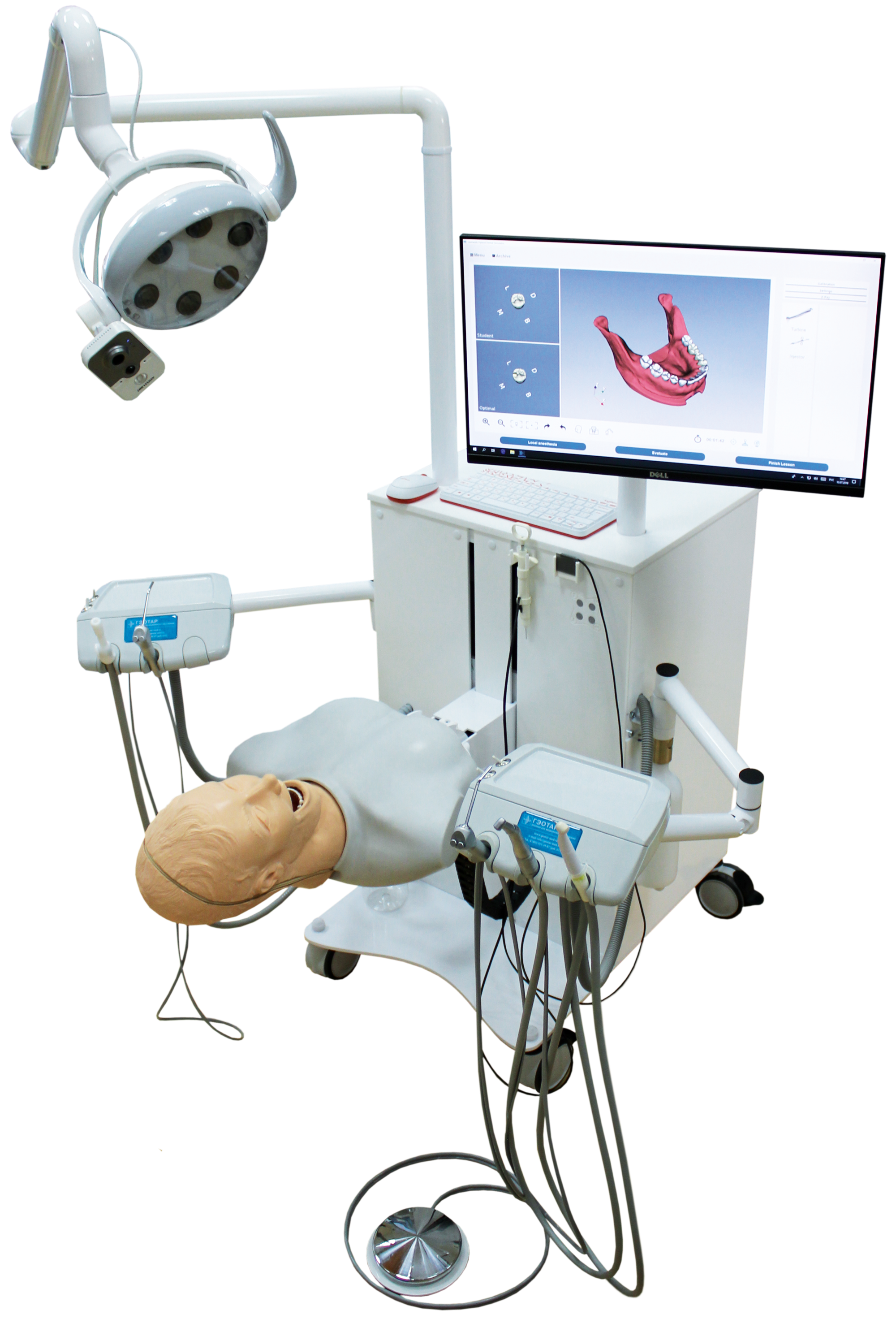

The simulator consists of a portable, multifunctional dental unit and an electromagnetic tracking system, which reproduces in real time position of a virtual handpiece on the screen, while a preinstalled software assesses the accuracy of the conducted procedures.

The dental unit components
 Operation tray
 Assistant tray
 Utility table
 Foot pneumatic pedal

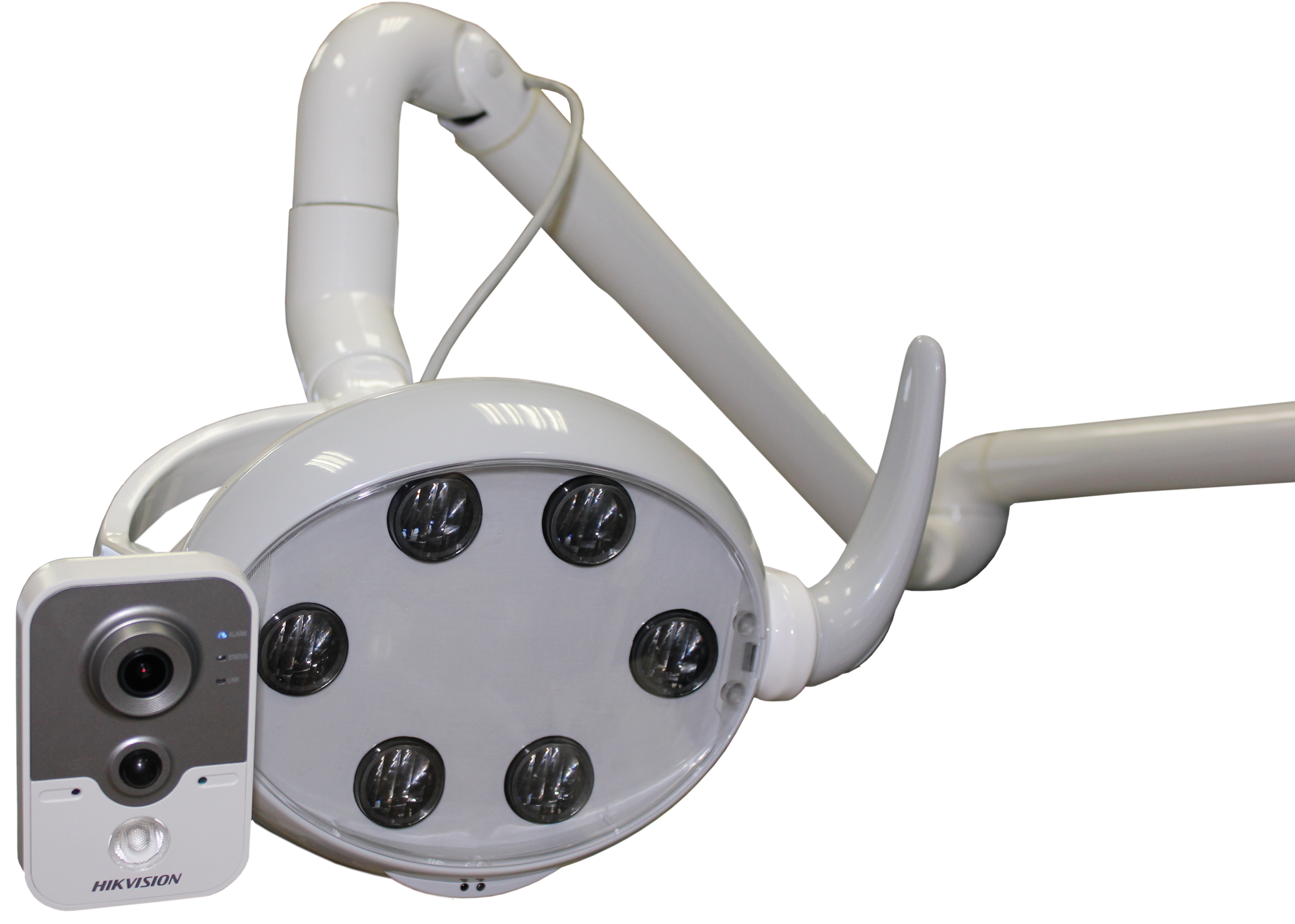

 Dental lamp
 Phantom for practicing
 Camera
The dental unit is also equipped with caster wheels with locking
mechanism

The Tracking System:
The microsensors, attached to the dental handpiece, are tracked in full 6DOF (6 Degrees-Of-Freedom) at speeds up to 240 Hz achieving impressive accuracy

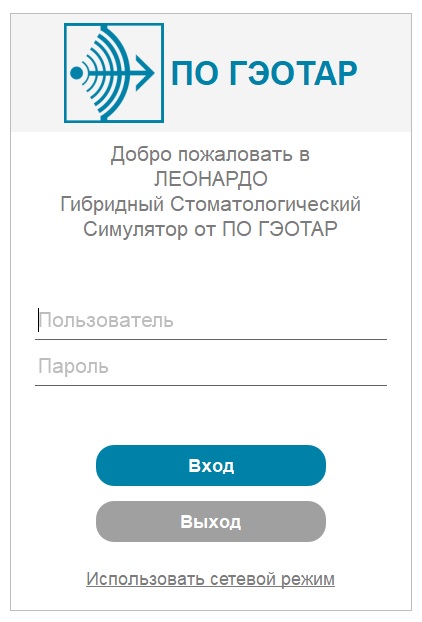

The Software:

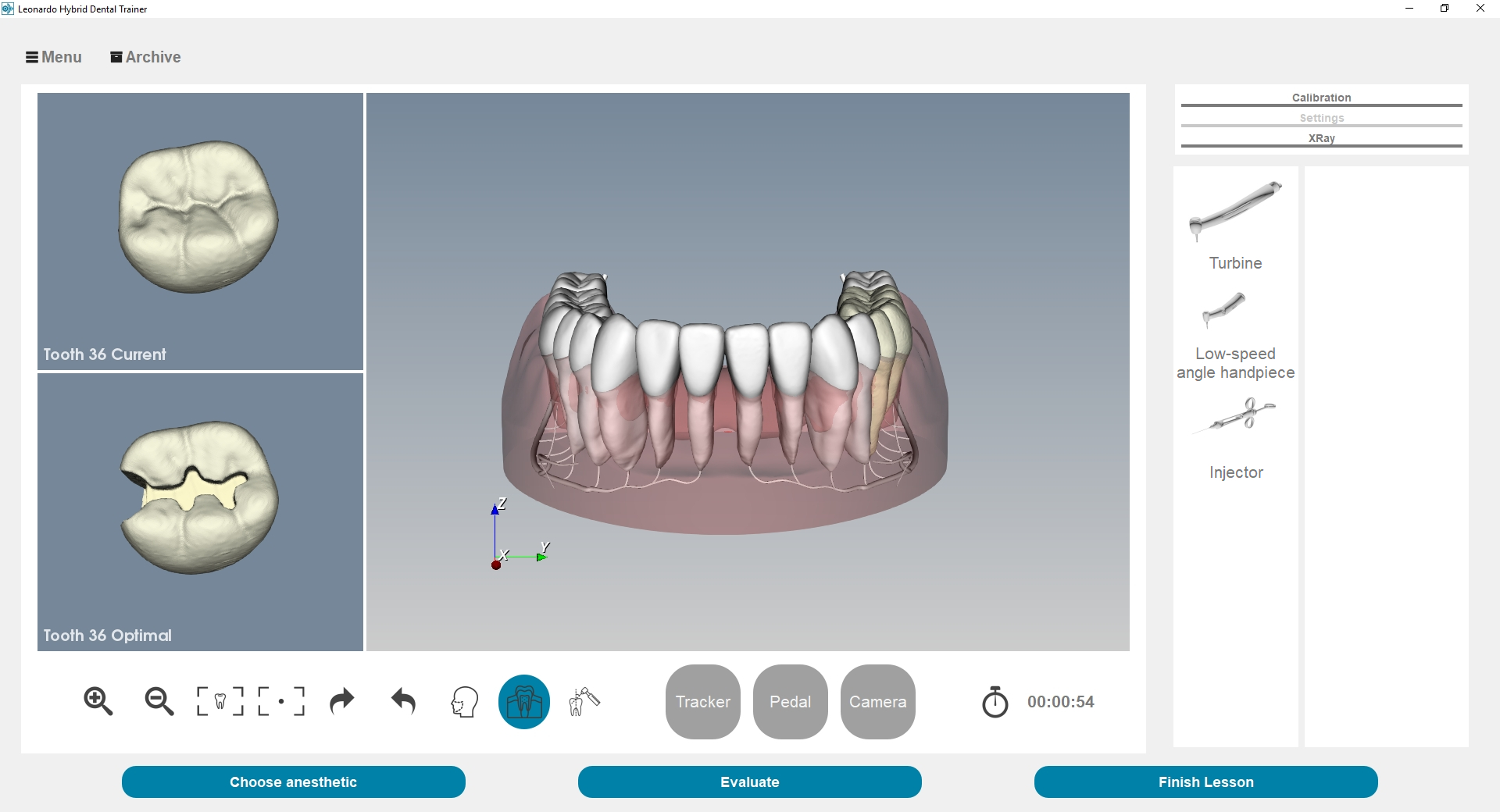

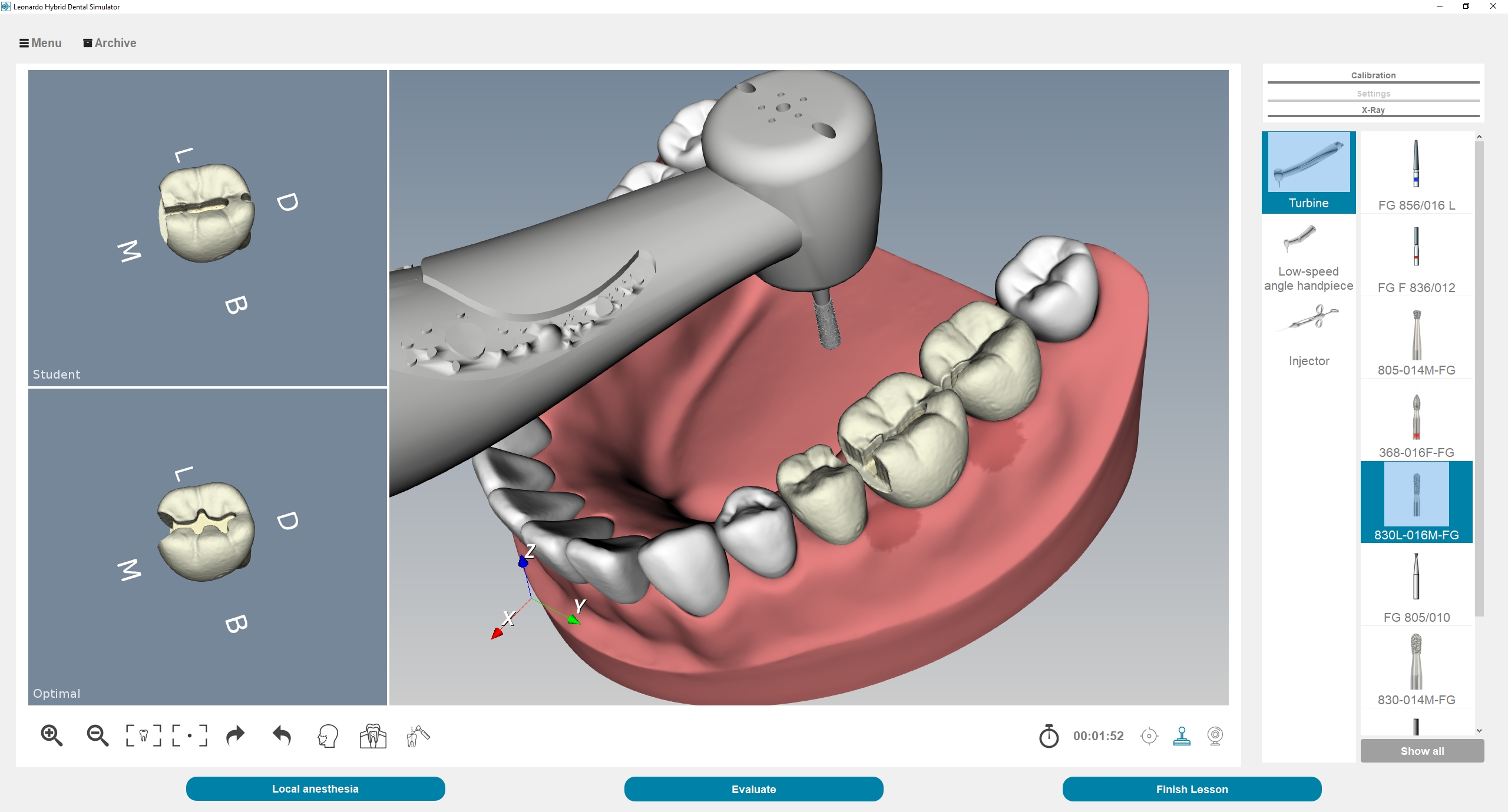

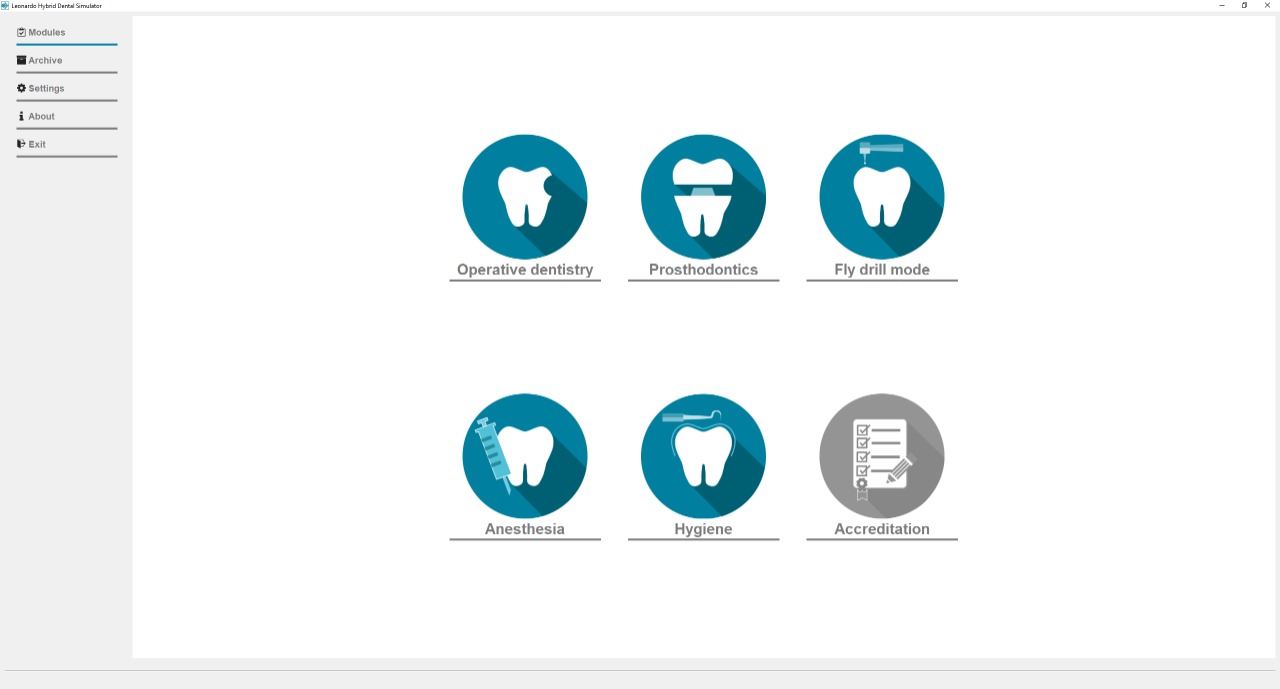

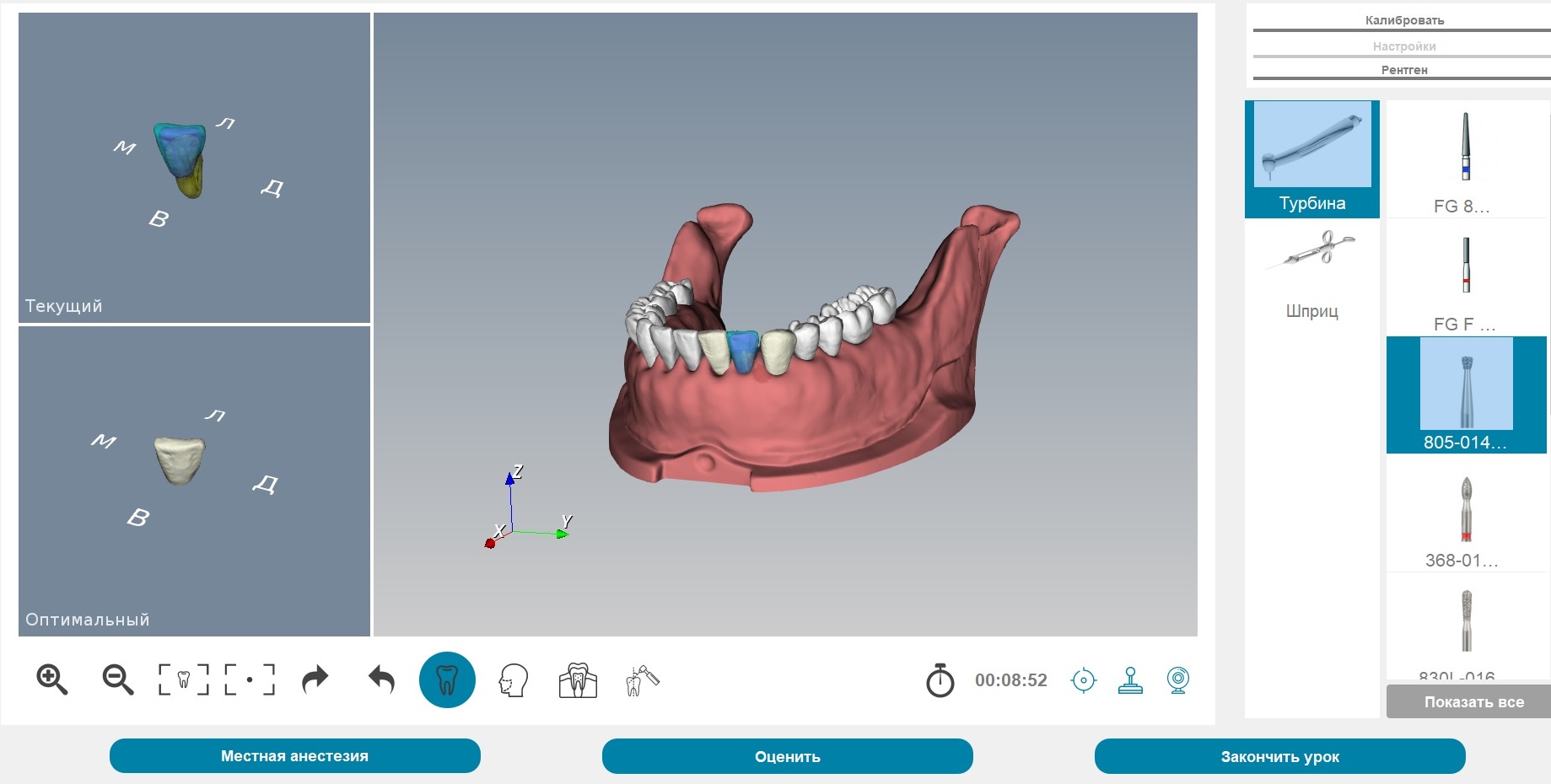

The truly unique software is structured in modules to visualize and assess various dental procedures: starting from history taking and X-Ray imaging up to anesthetic injection and crown preparation

The Assessment Criteria:
The trainee obtains feedback about his/her performance both during
a simulation training in real time and after completing it.

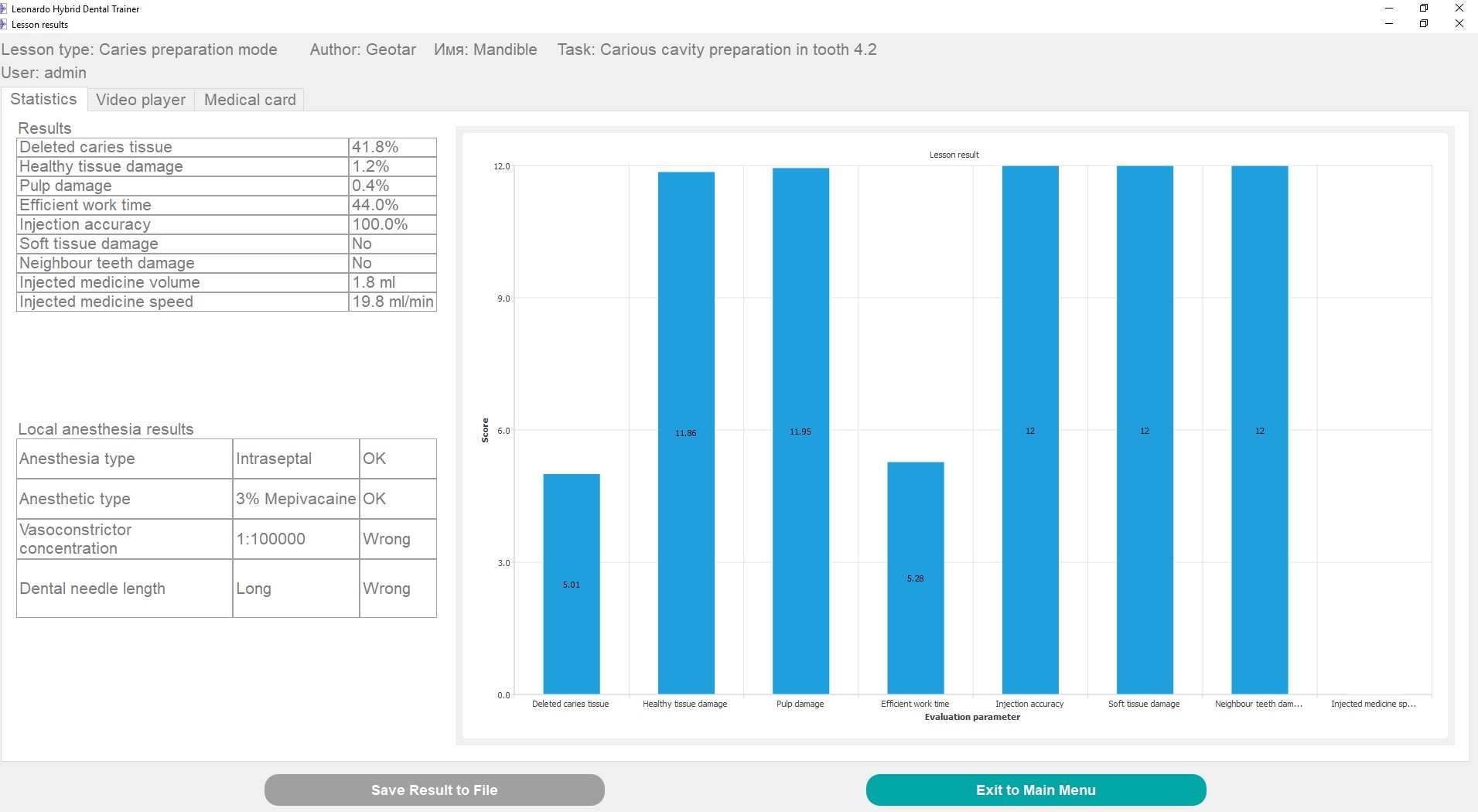

The assessed criteria are history taken from a virtual patient, relevance of the chosen anesthetic, injection technique, quantitative parameters of tooth preparation, ergonomics and safety parameters.
All of them are presented both in quantitative and graphic scales.

The Debriefing Option:

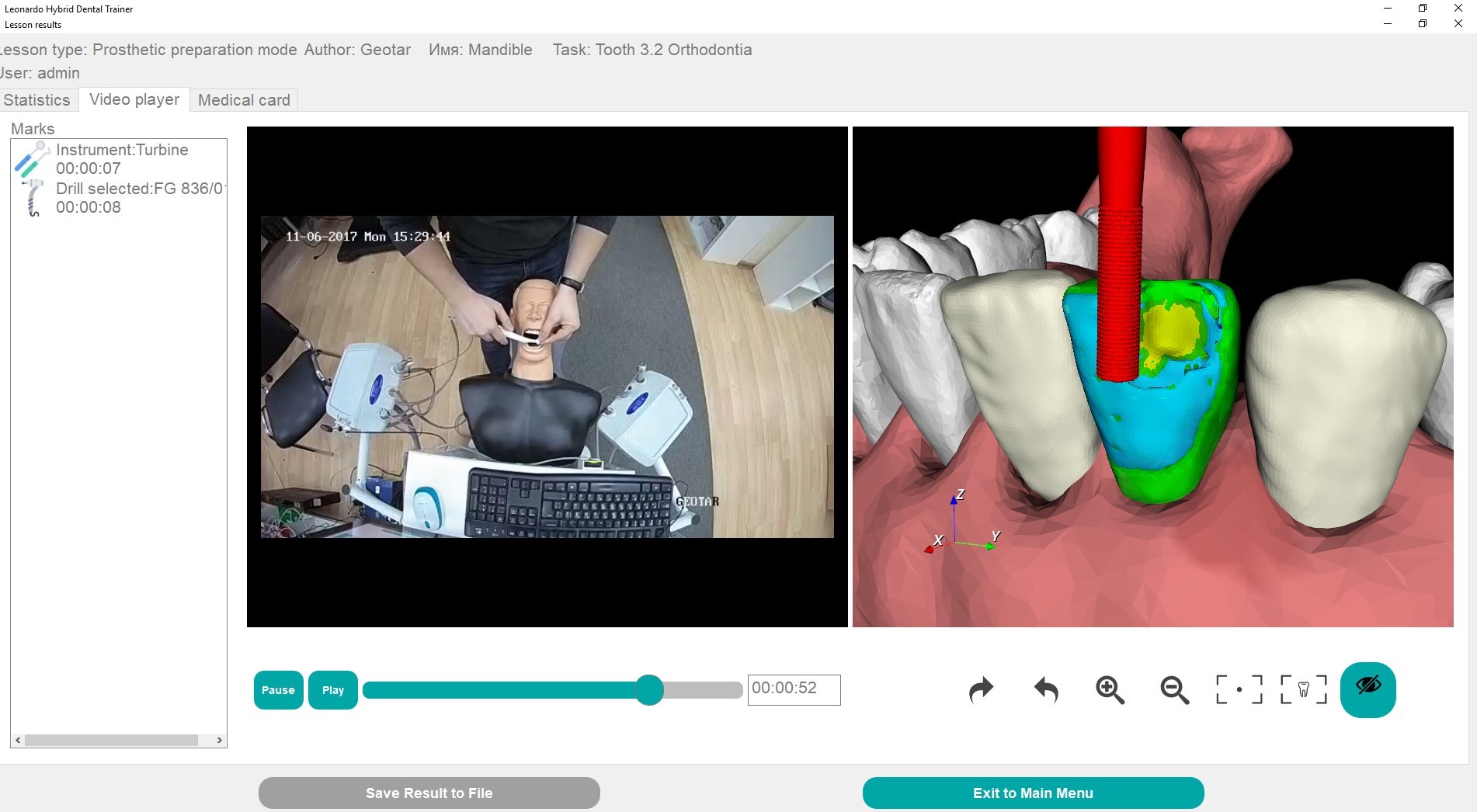

The simulator has an integrated debriefing. Every event, 3D capturing
of the screen, video capturing from the external camera and comments
are synchronized on a time scale (log). It is possible to navigate through it.

CE Marking.
