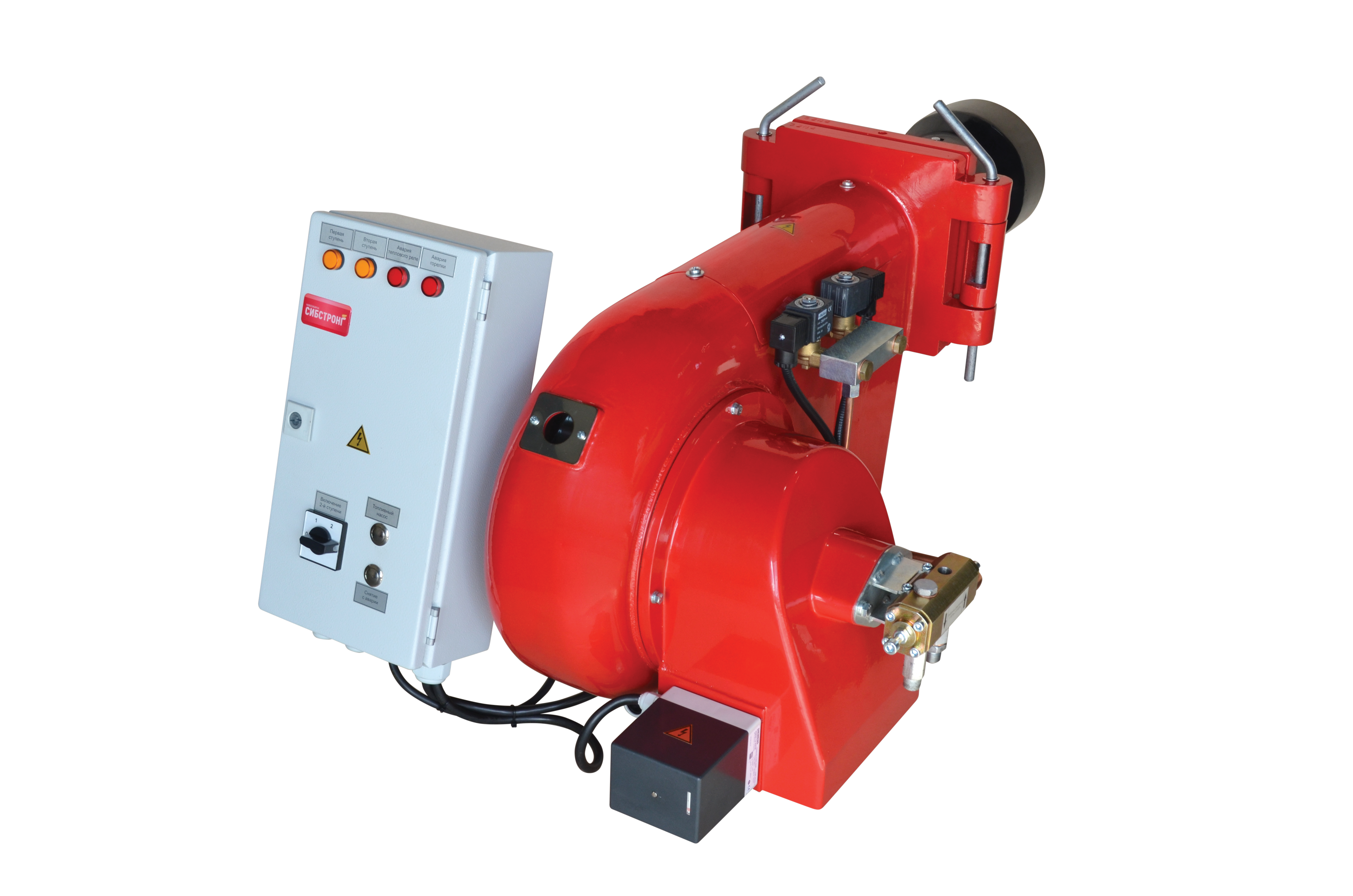

Diesel burner, IL-L type
The automatic burner with liquid fuel (fuel oil, oil, gas condensate) is designed to work with heating and steam boilers, with grain drying, oil refining installations, and so on.
Part number:
Supplier:
ООО "СибСтронг"Description
Technical characteristics:
- power from 50 kW / h to 6000 kW / h;
- operate in one -, two -, three-stage and modulating modes;
- the main type of fuel is diesel;
- fuel atomization is mechanical, using a high-pressure nozzle;
- the possibility of the most complete combustion of fuel is provided by adjusting the ratio of the amount of air and fuel;
- regulation of air flow at the minimum and maximum operating modes, provided by an electric servo. Automatic blocking of air access to the furnace when the burner stops working.
Operational requirements:
- fuel used for combustion in burners: "diesel Fuel. Technical conditions " GOST 305-2013;
- power supply voltage, rated: 220-380 V, 50 Hz.
