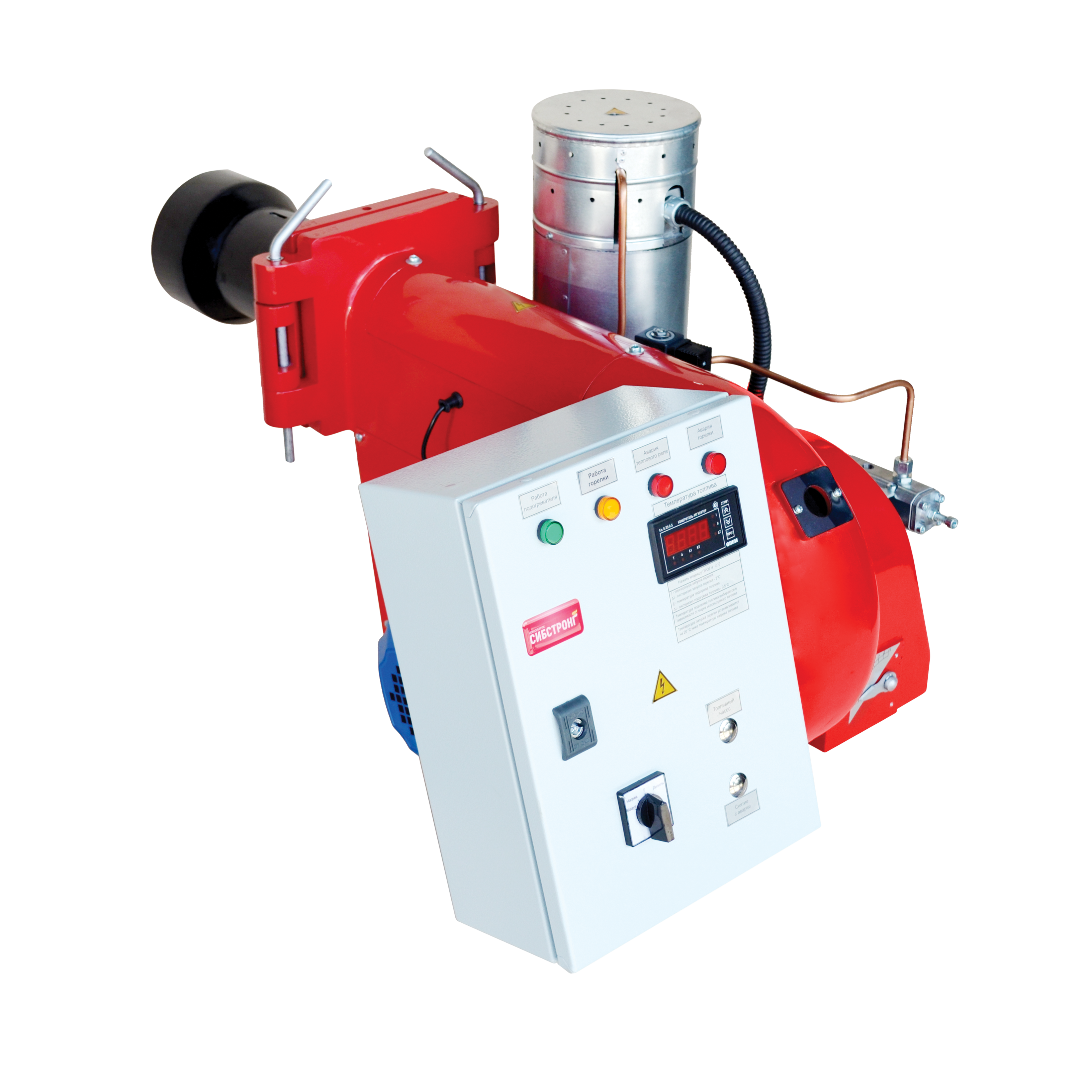

Fuel oil burner, IL-S type
The automatic burner with liquid fuel (fuel oil, oil, gas condensate) is designed to work with heating and steam boilers, with grain drying, oil refining installations, and so on.
Part number:
Supplier:
ООО "СибСтронг"Description
Technical characteristics:
- power from 90 kW / h to 6000 kW / h;
- operate in one -, two -, three-stage and modulating modes;
- the main type of fuel is fuel oil, the fuel viscosity index is up to 100 cSt at 80°C, it is possible to work on diesel fuel;
- fuel atomization is mechanical, using a high-pressure nozzle;
- the possibility of the most complete combustion of fuel is provided by adjusting the ratio of air and fuel;
- the construction of a fuel node specially designed for fuel with higher viscosity and provides the circulation of fuel during the scavenging of the burner;
- air flow control at minimum and maximum operating modes, provided by an electric servo. Automatic blocking of air access to the furnace when the burner stops working.
Operational requirements:
-fuel used for combustion in burners: "oil Fuel. Fuel oil "GOST 10585-2013," diesel Fuel. Technical conditions " GOST 305-2013;
- an indicator of the viscosity of the fuel to 100 cSt at 80°C;
- power supply voltage, rated 220-380 V, 50 Hz.
