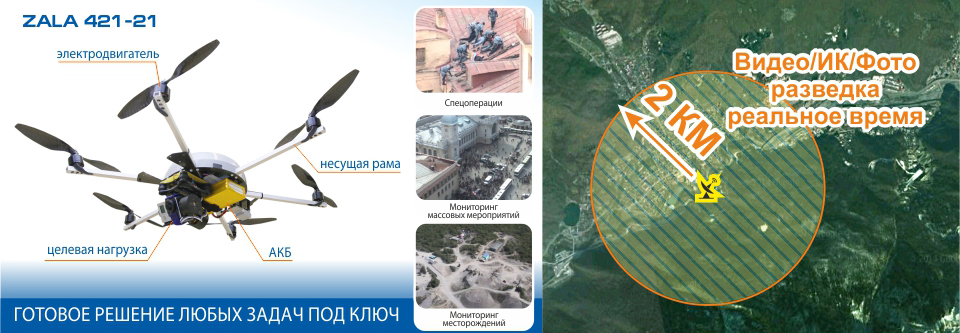

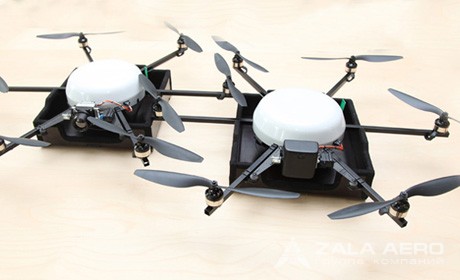

UAV ZALA 421-21
Tactical unmanned helicopter range with an automatic control system (autopilot), navigation system (GPS / GLONASS), built-in digital telemetry system, navigation lights, built-in three axis magnetometer, an analog video transmitter with a radio modem receiver SNA and search the transmitter.
Part number:
Supplier:
Group of companies ZALA AERODescription
Radius video / radio channel 2 km / km 2
The flight duration of 40 minutes
Dimensions (without the rechargeable battery) 600h520h75 mm
Maximum altitude 1000 m
Running Vertical - automatic
Landing Vertical - automatic or hand
Engine Type Electric drawing - shestirotornaya circuit
The speed of 40 km / h
The maximum take-off weight of 1.5 kg
Mass target load of 300 g
Navigation GPS / GLONASS
Target loads type "21"
Additional TSN Setting LED backlight 10 W
Glider nondemountable
Battery 10,000 mAh 3S
The maximum wind speed of 10 m / s
Temperature range -30 ° C ... + 40 ° C
Compact, easy to manage unmanned helicopter starts "with hands", which allows him to apply successfully for aerial reconnaissance in areas where there are no conditions for the takeoff and landing unmanned aerial vehicles such as aircraft.
ZALA 421-21 is designed for special operations in remote areas at any time of the day: to search for and detect objects and people, detection of acts of unauthorized activities in the area of responsibility, security perimeters within a radius of 2 km.
If necessary, this apparatus is applied to an LED backlight, the transmission of sound effects and relay signals.
