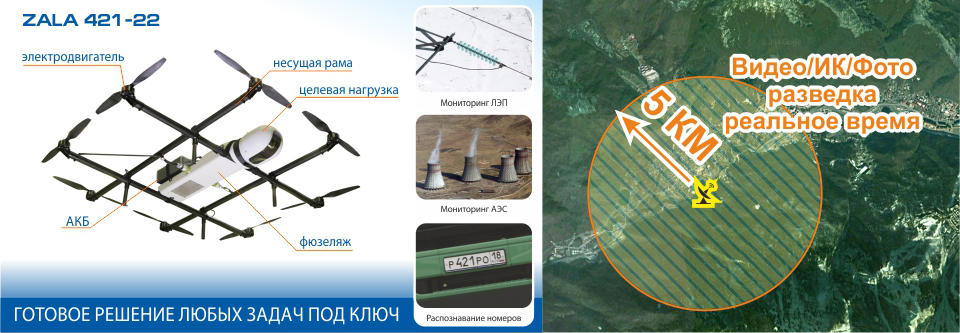

UAV ZALA 421-22
Unmanned helicopter of medium-range with an automatic control system (autopilot), navigation system (GPS / GLONASS), built-in digital telemetry system, navigation lights, built-in three axis magnetometer module retention and active target tracking (AC unit), digital broadband video transmitter C-OFDM- modulating a radio modem receiver to SNA (diagonal "AIR"), self-diagnosis system and search receiver.
Part number:
Supplier:
Group of companies ZALA AERODescription
Radius video / radio channel of 5 km / 5 km
The flight duration of 35 minutes
Frame Dimensions folded (unfolded) state without fuselage 1840h220h165 mm (1060h1060h165 mm)
Dimensions of the fuselage without ZN 145h110h520 mm
Dimensions of the fuselage with ZN 145h110h670 mm
Dimensions when assembled with the battery 1065h1065h240 mm
Maximum altitude 1000 m
Running Vertical - automatic
Landing Vertical - automatic
Engine Type Electric drawing - vosmirotornaya circuit
The speed of 30 km / h
Maximum take-off weight of 8 kg
Mass target load 2 kg
Navigation GPS / GLONASS
Target loads type "+ 16E"
Additional TSN Setting LED backlight 10 W
Glider Demountable - interchangeable frame (foldable) and fuselage
Suspension Remote Reset various loads (stun, marker devices, beacons etc.)
Battery 10,000 mAh 7S x2 (in emergency situation will continue to fly on one battery)
The maximum wind speed of 10 m / s
Temperature range -30 ° C ... + 40 ° C
Built-in automatic tracking
When one of the engine unit to continue flight
Folding machine design, made of composite materials that provide easy delivery of the complex to the site of operation of any vehicle.
This unit does not require a specially prepared landing site, which makes it indispensable in conducting aerial surveillance in remote areas.
ZALA 421-22 successfully used for operations at any time: for search and detection of objects, security perimeters within a radius of 5 km. Through integrated module AS unit automatically monitors the static and moving objects.
Target load models are fully compatible with the type of UAV aircraft ZALA 421-16E and ZALA 421-16EM
