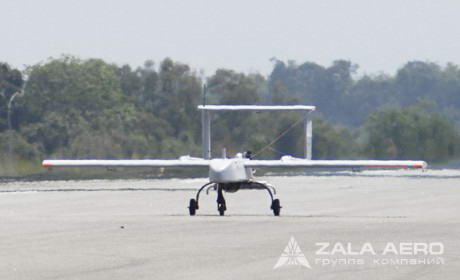

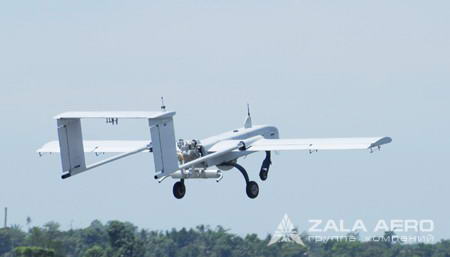

Unmanned aircraft ZALA 421-20
Unmanned aircraft ZALA 421-20 is capable of carrying up to 50 kg payload, combines and controls the various systems development companies, including aeronautical data, automatic decryption system, laser target designation, IR-camera of high resolution. When the 400-kilometer operating range, the plane is fully compatible with other systems ZALA that allows you to integrate the platform with all users NSO ZALA, thanks to the unique ZANET system development.
Part number:
Supplier:
Group of companies ZALA AERODescription
Radius Video / Radio Channel 50 km / 120 km
Flight Duration 6-8 hours
Dimensions UAV 6000 * 5500 * 1000 mm
Maximum altitude 5000 m
Take-off "an aircraft"
Planting "an aircraft"
Engine type internal combustion engine pusher
The speed of 90-220 km / h
Maximum take-off weight of 200 kg
Mass target load of 50 kg
Navigation INS-corrected GPS / GLONASS, electronic telemeter
Targeted load type "20", type "+ 16E"
Temperature range -30 ° C ... + 40 ° C
appointment
Unmanned aircraft designed for long-term monitoring, border protection, pipeline monitoring, maritime surveillance, monitoring of fires and other emergencies at a considerable distance.
The construction
design is presented with a modified design and with built-in fuel tanks, which increases the duration of the system up to 6-8 hours. Have regular work to increase the mass of payload and fuel, as well as to improve the engine, which will improve the flight.
