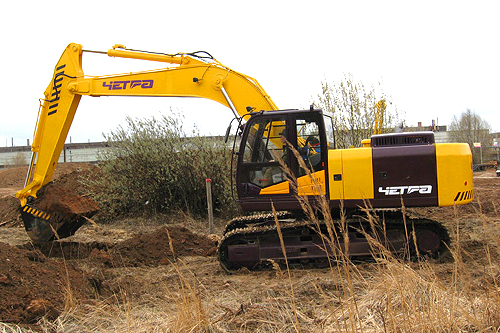

CHETRA EGP-200
CHETRA EGP-200 is a multi-purpose excavator developed mainly for in town applications. Low noise level, environment-friendly engine provide for operations even in restrained urban conditions. The excavator is equipped with a comfortable cab with automatic system of climate control. For specific operations it can be completed with a narrow and slope bucket.
Part number:
Supplier:
"Service of Industrial Machines" LLCDescription
TECHNICAL PARAMETERS OF CHETRA EGP-200
Engine model Cummins QSB 6.7
Engine operating power, kW (HP) 123 (167)
Operating weight, kg 20 000
Standart bucket capacity, m3 0,8
OPTIONAL BUCKETS
-for soils with density 1800 kg/м3 0,8
-for soils with density 1600 kg/м3 0,9
Crawler track width, mm 600
Ground specific pressure, kgf/cm2 0,5
Maximum digging depth, mm 6 675
Maximum digging radius, mm 9 675
Dump height, mm 7 190
OVERALL DIMENSIONS
Overall width, mm 2 800
Cab roof height, mm 3 010
Height in transport condition, mm 3 000
Length in transport condition, mm 9 495
