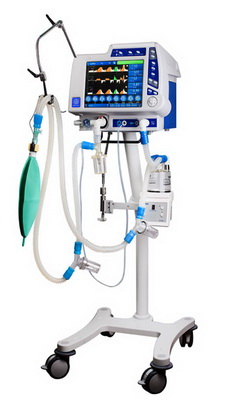

Aventa-M
Distinctive features of the apparatus:
The mobile device of high class is equipped with the built in generator of a stream and modern touch management.
The display shows all digital parameters and respiratory graphics, including monitoring FiO2; EtCO2 in real time.
The device is intended for use by adults and children.
Part number:
Supplier:
JSC "URAL INSTRUMENT-MAKING PLANT"Description
Description
- automatic adjustment of ventilation parameters and alarm limits, taking into account the patient's body mass index;
- Highly sensitive ventilation correction when self-breathing attempts occur;
- automatic airway maneuver;
- automatic selection of optimum speed of pressure build-up (Pramp -AUTO);
- sensitive intelligent trigger (does not miss real inspiration attempts and minimizes the likelihood of false positives even under leakage conditions and NIV);
- automatic selection of the optimum switching point for exhalation for spontaneous breaths (Esens - AUTO);
- automatic control of FiO2
- automatic control of PEEP;
- adaptation of the breathing pattern to individual parameters of the lung - AUTO-MVG; monitoring of output CO2;
- automatic leakage compensation; the ability to transfer information via the wireless interface;
- built-in battery;
- flip-flop F;
- flip-flop Р.
Frequency of forced breathing (f) 1-150 breath/min
Volume of forced inspiration (VT) 20-3000 ml
Peak flow on inspiration (PeakFlow) not less than 240 l/min
FiO2 21-100%
Support pressure (PS) 0-100 cmH2О
Configurable 12-inch display
Inspiration pause
Expiratory pause
Enhancement of FiO 2 Locking the touch panel
Graphic system:
provides the display of graphs:
- curves (Flow, Pressure, Volume, Capnogram, Plethysmogram);
- Loops (Flow / Volume, Pressure / Volume, Flow - Pressure);
- trends (graphic and digital)
Sources of gases:
- from the network, the balloon, the concentrator (02);
- from the built-in electric drive.
Functions:
- Switching threshold for exhalation (Esens) AUTO or adjustable
- Form of flow (for volumetric breaths) rectangular,
descending
- Sigh on/of
- Pressure rise time (Pramp) or RT AUTO or adjustable
- Compensation for leaks оn/of
- automatic adjustment of ventilation parameters and alarm limits, taking into account the patient's body mass index;
- Highly sensitive ventilation correction when self-breathing attempts occur;
- automatic airway maneuver;
- automatic selection of optimum speed of pressure build-up (Pramp -AUTO);
- sensitive intelligent trigger (does not miss real inspiration attempts and minimizes the likelihood of false positives even under leakage conditions and NIV);
- automatic selection of the optimum switching point for exhalation for spontaneous breaths (Esens - AUTO);
- automatic control of FiO2
- automatic control of PEEP;
- adaptation of the breathing pattern to individual parameters of the lung - AUTO-MVG; monitoring of output CO2;
- automatic leakage compensation; the ability to transfer information via the wireless interface;
- built-in battery;
- flip-flop F;
- flip-flop Р.
Frequency of forced breathing (f) 1-150 breath/min
Volume of forced inspiration (VT) 20-3000 ml
Peak flow on inspiration (PeakFlow) not less than 240 l/min
FiO2 21-100%
Support pressure (PS) 0-100 cmH2О
Configurable 12-inch display
Inspiration pause
Expiratory pause
Enhancement of FiO 2 Locking the touch panel
Graphic system:
provides the display of graphs:
- curves (Flow, Pressure, Volume, Capnogram, Plethysmogram);
- Loops (Flow / Volume, Pressure / Volume, Flow - Pressure);
- trends (graphic and digital)
Sources of gases:
- from the network, the balloon, the concentrator (02);
- from the built-in electric drive.
Functions:
- Switching threshold for exhalation (Esens) AUTO or adjustable
- Form of flow (for volumetric breaths) rectangular,
descending
- Sigh on/of
- Pressure rise time (Pramp) or RT AUTO or adjustable
- Compensation for leaks оn/of
Specification
1. Авента-М.PDF2. АVENTA-M_amended.pdf
