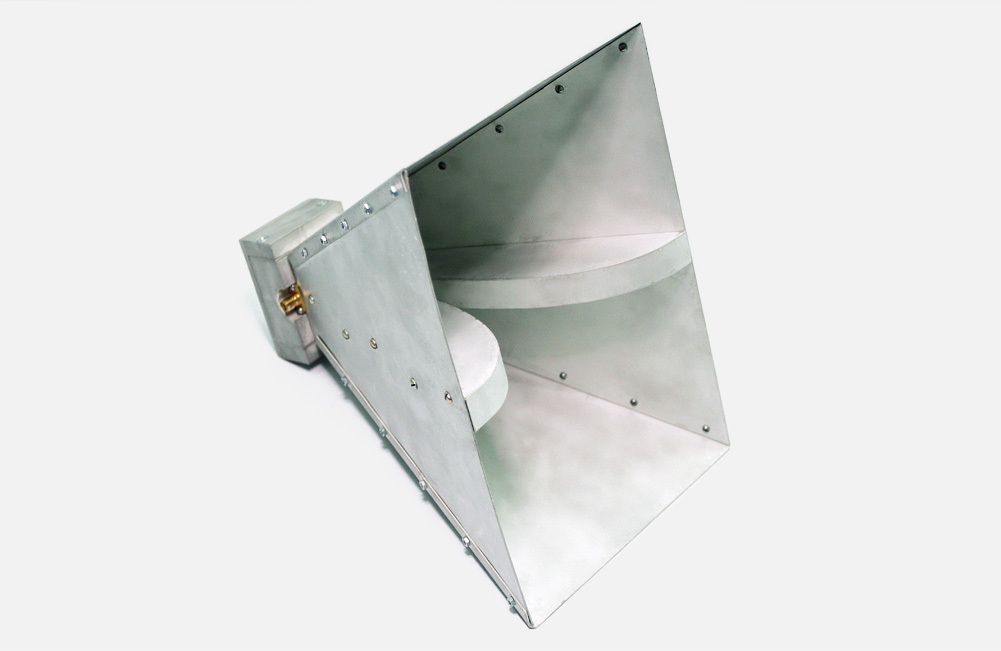

Box Horn Antrad-6R 1-8 GHz
Antrad-6P highly directional ultra-wideband horn antenna can be used in radar, radio monitoring
and radio communication systems operating in different frequency ranges in the frequency band
from 1 to 8 GHz.
Part number:
Supplier:
JSC SozvezdieDescription
It is possible to use the Antrad-6P horn antenna as a measuring antenna due to the technical
characteristics regulated with certain errors.
Specifications:
Antenna Type: Horn
Frequency range: 1 - 8 GHz
Gain: up to 20.6 dBi (at 6 GHz)
Antenna Impedance: 50 Ohm, Unbalanced
SWR: no more than 2.0: 1
Antenna Dimensions: 210 x 205 x 145 mm
Connector: SMA (FEMALE)
Weight: 0.7 kg
Customization of the antenna is possible.
Example: using an N-type adapter, developing a tripod mount, developing an opening plug, painting
black.
