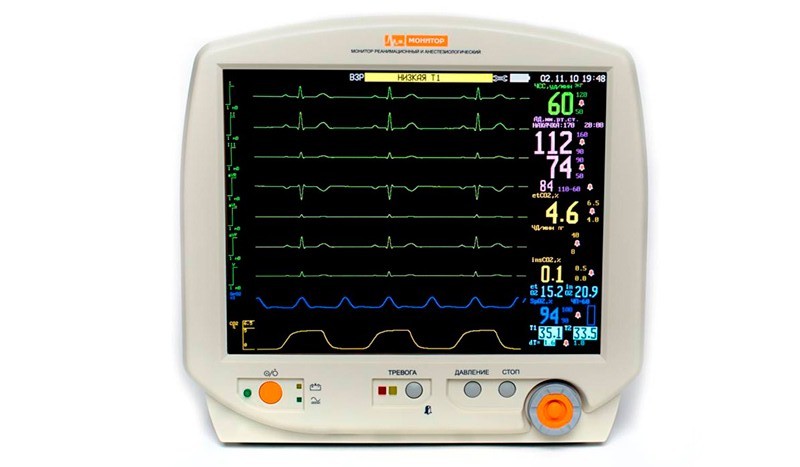

Description
USAGE: functional diagnostics, valueology, regenerative medicine, occupational physiology, spa medicine, exercise and fitness rooms.
Basic functions:
ECG control at tests and measurement of blood pressure at rest
Control of sportsman’s physiologic parameters between training stresses (connection time of ECG cable and NIBP does not exceed one minute)
Control of workman’s physiologic parameters at work and rest;
Mass examination of cardiorespiratory and nervous system;
Control of physiologic parameters at different functional tests (for example orthostatic test)
Control of efficiency of therapeutic and training activity ;
Control at relaxation and autogenic therapy.
Service functions:
Automatic generation of graphic and numeric stress testing report ( possibility of storing and registration on thermal printer of graphic and numeric trends of physiologic parameters with 15 sec or 1 minute interval)
Possibility of memorizing and printing up to 100 ECG fragments 10 minutes each (one lead)
3 levels of alarm priorities on light and sound
From 2 up to 7 waveforms are displayed on the screen
Electrocardiogram (ECG) & Heart Rate (HR)
Leads: I-II-III, aVR, aVL, aVF, V
ST segment analysis at rest and during exercise.
HR Measurement Range
Stress index of nervous and vegetative system
Analysis and indication of main arrhythmias
ECG output for synchronization with defibrillator.
Protection against defibrillation and electrosurgery.
Lead fault detection.
NIBP
Systolic, Diastolic, Mean
Measurement Method: Oscillometric
Range of up to 300 mm. Hg
Measurement interval: up to 480 minutes.
Continuous mode of BP measurement
Respiration
Measurement method: rheographic with ECG electrodes.
Sensitivity: 0.5 - 30 mm / ohm.
The measuring range: 0-180 respiratory / min.
Levels of sensitivity: 7
General
Built-in thermal printer
Batteries provide up to 5 hours of continuous operation.
Power Requirements: 85 - 265 VAC, 50-60 Hz
In automobile constant power supply: 12V (10 to 16 V)
Battery: 22.2 VDC, 2 Ah
Power Consumption Max: 30 VA
Type of display: color TFT display
Size: 10.4" or 12.1"
Waveforms: up to 9
Resolution: 800x600 pixels
